Gusset Pouch Packaging
Gusset pouch packaging uses expandable folds along the sides of the pouch to provide additional depth and capacity. The pouch lies relatively flat when empty, while the side gussets open as it is filled to create a fuller, more structured profile.
What Is Gusset Pouch Packaging?

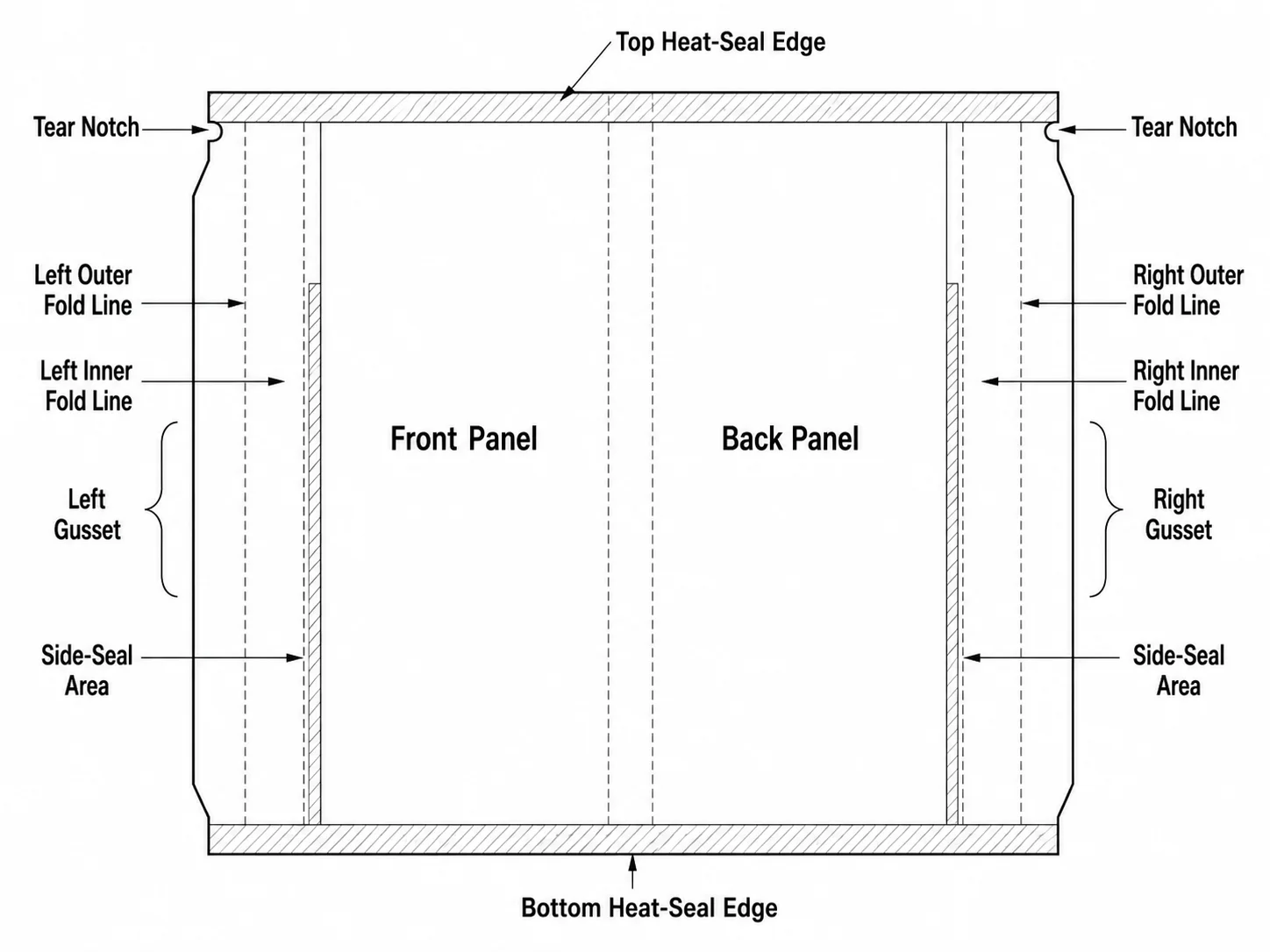

A gusset pouch is a flexible package with inward-folded panels along both sides. These accordion-style folds allow the pouch to lie flat before filling and expand as product is added, increasing usable capacity without requiring a wider front panel.
Common formats include center-seal gusset pouches and side-seal gusset pouches. Center-seal gusset pouches feature a fin or lap seal along the back and are commonly used for tea, coffee, seeds, nuts, powders and products packed on automated packaging lines. Side-seal gusset pouches use side seals to create a cleaner profile suited to branded retail packaging.
A conventional gusset pouch is different from an 8-side seal pouch. Gusset pouches gain capacity primarily through their expandable side folds and typically do not have a rigid flat bottom. By comparison, 8-side seal pouches use a defined flat-bottom construction with additional bottom seals for improved stability.
Advantages Of Gusset Pouch Packaging
Expanded Capacity With Side Gussets
Expandable folds on both sides provide greater capacity than a flat pouch of the same front width. This makes gusset pouches suitable for medium-to-large packs of tea, coffee, nuts, seeds, grains and pet food.
A Fuller Profile For Better Presentation
Once filled, the side gussets expand to create a fuller, more structured package for retail shelves, e-commerce product photography and sample displays. The front panel provides the main branding area, while the back can carry nutritional information, barcodes and product details.
Compatible With Automated Packaging Lines
Center-seal gusset pouches can be produced from rollstock on automated form-fill-seal equipment. They are widely used for seeds, tea, ground coffee, granular foods, powders and snacks, helping manufacturers improve packing efficiency.
Cost-Effective Flexible Packaging Structure
Gusset pouches provide additional capacity with a simpler construction than 8-side seal flat-bottom pouches, helping control material use and converting costs. For products that need more capacity without a flat, stand-up bottom, a gusset pouch is a practical packaging option.
Gusset Pouch Packaging Specifications
The following are common specification ranges for gusset pouch packaging and can be adjusted to suit specific product requirements:
| Parameter | Specification / Options | Description |
|---|---|---|
| Size Specifications | ||
| Bag Size | Width: 60–350 mm Height: 100–600 mm |
Custom sizes available according to product volume and packaging requirements |
| Side Gusset | 20–120 mm | Adjustable to increase pouch depth and filling capacity |
| Bag Thickness | 60–180 μm | Selected according to product weight, strength and barrier requirements |
| Pouch Structures | ||
| Available Types | Center-Seal, Side-Seal, Open-Mouth, Zipper Gusset Pouch | Selected according to filling method, packaging equipment and resealing needs |
| Materials | ||
| Standard Materials | PET/PE, BOPP/PE, BOPP/CPP | Suitable for snacks, dry goods, powders and general packaging |
| Barrier Materials | PET/VMPET/PE, PET/AL/PE, PET/AL/NY/PE | For products requiring stronger moisture, oxygen, light and aroma protection |
| High-Strength / Premium Materials | PET/NY/PE, PET/PA/PE, Kraft Paper Laminates | Available for heavier products, puncture resistance and premium presentation |
| Printing & Finishing | ||
| Printing | Gravure / Digital Printing | Gravure for volume production; digital printing for smaller batches and samples |
| Print Colors | 1–10 Colors | Custom printing available on front, back and side gussets |
| Surface Finish | Gloss, Matte, Spot Varnish, Hot Foil, Metallized | Multiple finishes available according to brand and product positioning |
| Optional Features | ||
| Accessories | Zipper, Tear Notch, Degassing Valve, Window, Hang Hole | Optional features available according to product and retail requirements |
| Commercial Information | ||
| MOQ | Digital: 500–1,000 pcs Gravure: 5,000–10,000 pcs |
Final MOQ depends on size, material, pouch structure and printing process |
| Sample Lead Time | 3–7 Days | For confirming pouch size, gusset structure and print appearance |
| Production Lead Time | 10–25 Days | Depends on order quantity, materials and production schedule |
| Customization | Custom Size, Material & Printing | Produced according to artwork, samples, dimensions and packaging requirements |
Common Applications Of Gusset Pouch Packaging

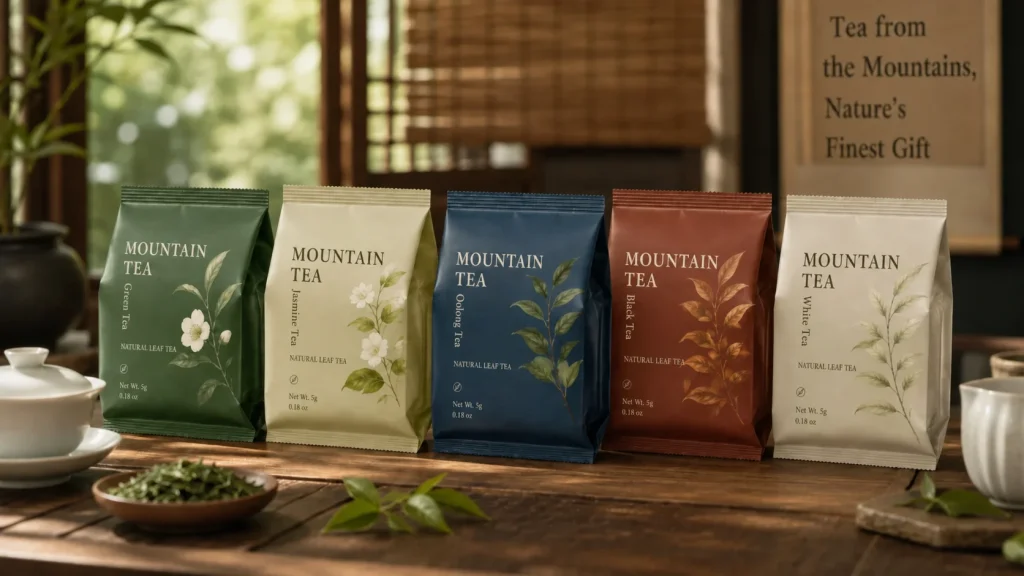

Tea Packaging
Gusset pouches are suitable for loose-leaf tea, herbal tea, tea bag overwraps and family-size tea packs. Their expandable side folds provide additional capacity, while foil or metallized laminates help protect against moisture and light and support aroma retention.
Coffee Packaging
Whole-bean and ground coffee can be packed in gusset pouches. One-way degassing valves can be added for freshly roasted coffee beans, while high-barrier laminates help protect ground coffee against moisture and aroma loss.
Nuts And Snack Packaging
Gusset pouches provide generous capacity for sunflower seeds, nuts, dried fruit, biscuits and puffed snacks. Their expandable format works well for family packs, sharing packs and supermarket packaging.
Powder, Grain And Dry Goods Packaging
Gusset pouches are suitable for protein powders, seasonings, nutritional powders, grains, cereals and other dry goods. Their expandable side folds accommodate medium-to-large pack sizes while maintaining an efficient front-panel footprint.
Pet Food Packaging
Pet treats, freeze-dried pet food and kibble require durable packaging. Gusset pouches can use puncture-resistant laminates such as PET/NY/PE to improve compression resistance and shipping durability.
Gusset Pouch Packaging Cases

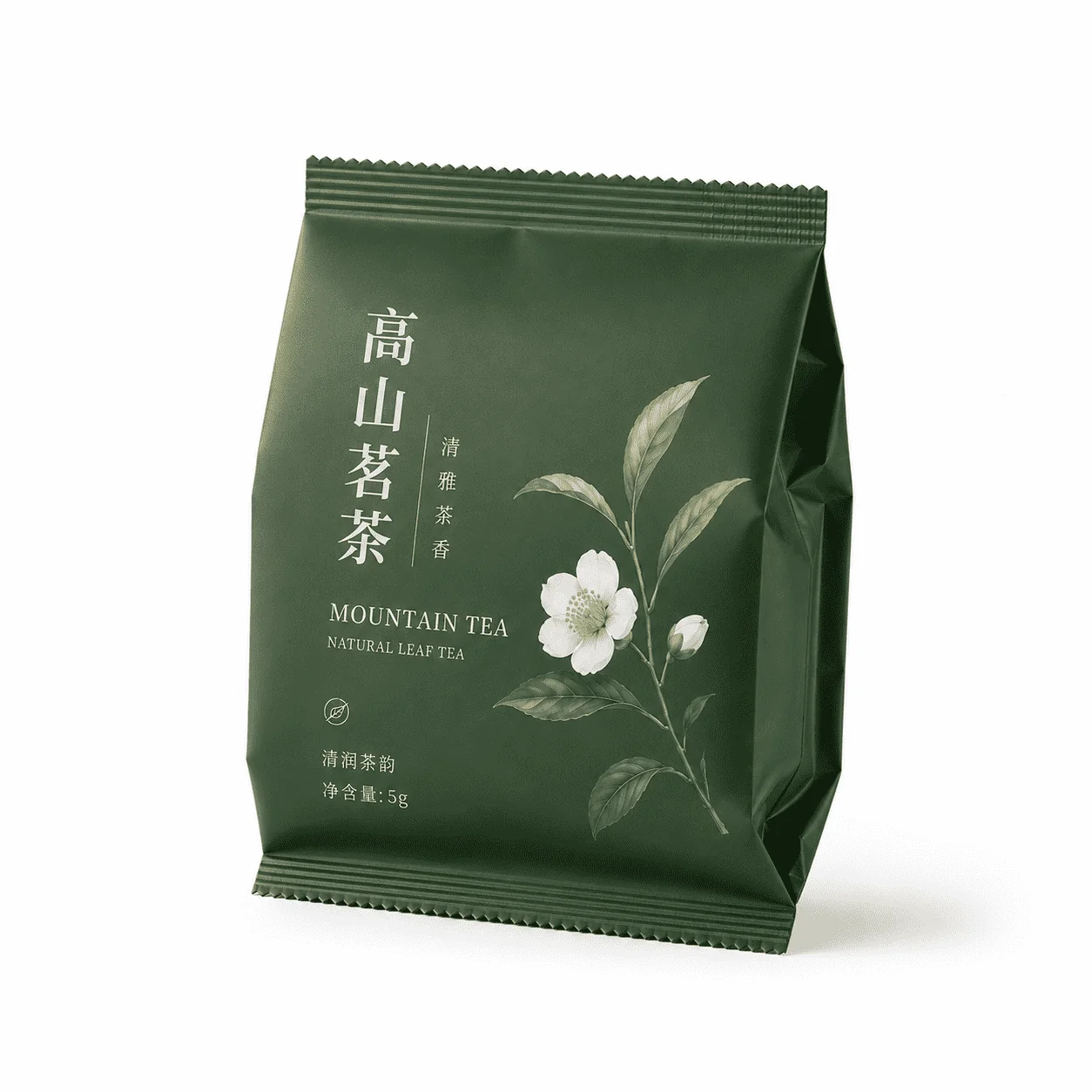

Tea Pouches, Custom Side Seal Gusset Pouches, Pouch for Snacks, Nuts, Candy, Chocolate and Coffee Beans
了解详情
Sunflower Seed Pouches, Snack Pouches, Pouch for Nuts, Coffee Beans and Chocolate Beans
了解详情
Kraft Paper Pouches, Coffee Bean Kraft Pouches, Side Gusset Kraft Pouches for Nuts, Tea and Snacks
了解详情
